Delta Robot DJ Serial
- High-Speed: Up to 120PPM
- Cost Effective
- Easy to Operate
- Modular System
- Low Maintenace
- Certificate: ISO, CE
- Application: Food, Beverage, Pharmaceutical, Consumer Electronics
- Warranty: 1 Year, Free Lifelong Technical Support
Application Fields
Our Delta Robot can be used in any industry that needs pick and place. Here are the major fields that we working on. If your products are not in the following fields, we can test your products with our Delta Robot immediately upon your request.
Breads
Biscuits
Chocolates
Fruits
Vegetables
Meats
Application Videos
Features:
- Fast Speed (Up To180PPM/robot)
- High Accuracy(+/-0.01mm)
- Modular System
- Easy to Use
- Low Maintenance
Specifications:
| Model No. | WSC-600DJ | WSC-800DJ | WSC-1000DJ |
|---|---|---|---|
| X, Y Range | 600mm | 800mm | 1000mm |
| Z Range | 250mm | 250mm | 250mm |
| Rotation axis | ±360° | ±360° | ±360° |
| Rated Load | 3KG | 3KG | 3KG |
| Max Load | 5KG | 5KG | 5KG |
| Repeat Positioning Accuracy(mm) | ± 0.1 mm | ± 0.1 mm | ± 0.1 mm |
| Angular Positioning Accuracy | ＜0.05° | ＜0.05° | ＜0.05° |
| Power Supply | 200-240V 50/60Hz | 200-240V 50/60Hz | 200-240V 50/60Hz |
| Power | 3.5KW | 3.5KW | 3.5KW |
| Noise Level | ＜65db | ＜65db | ＜65db |
| Protection | IP54 | IP54 | IP54 |
| Working Temperature | 1～40°C | 1～40°C | 1～40°C |
| Humidity Range | 5%～90%(No Condensation) | 5%～90%(No Condensation) | 5%～90%(No Condensation) |
| Life Span | 20,000Hours + | 20,000Hours + | 20,000Hours + |
| Installation | Inverted | Inverted | Inverted |
| GW | 40KG | 40KG | 40KG |
| 1-3th Axis Motor | Panasonic | Panasonic | Panasonic |
| 1-3th Axis Reducer/Gearbox | Harmonic/Nidec | Harmonic/Nidec | Harmonic/Nidec |
| Fourth Axis motors | Panasonic | Panasonic | Panasonic |
| Fourth Reducer/Gearbox | LeaderDrive | LeaderDrive | LeaderDrive |
| Controller/PLC | KEBA | KEBA | KEBA |
| HMI | KEBA | KEBA | KEBA |

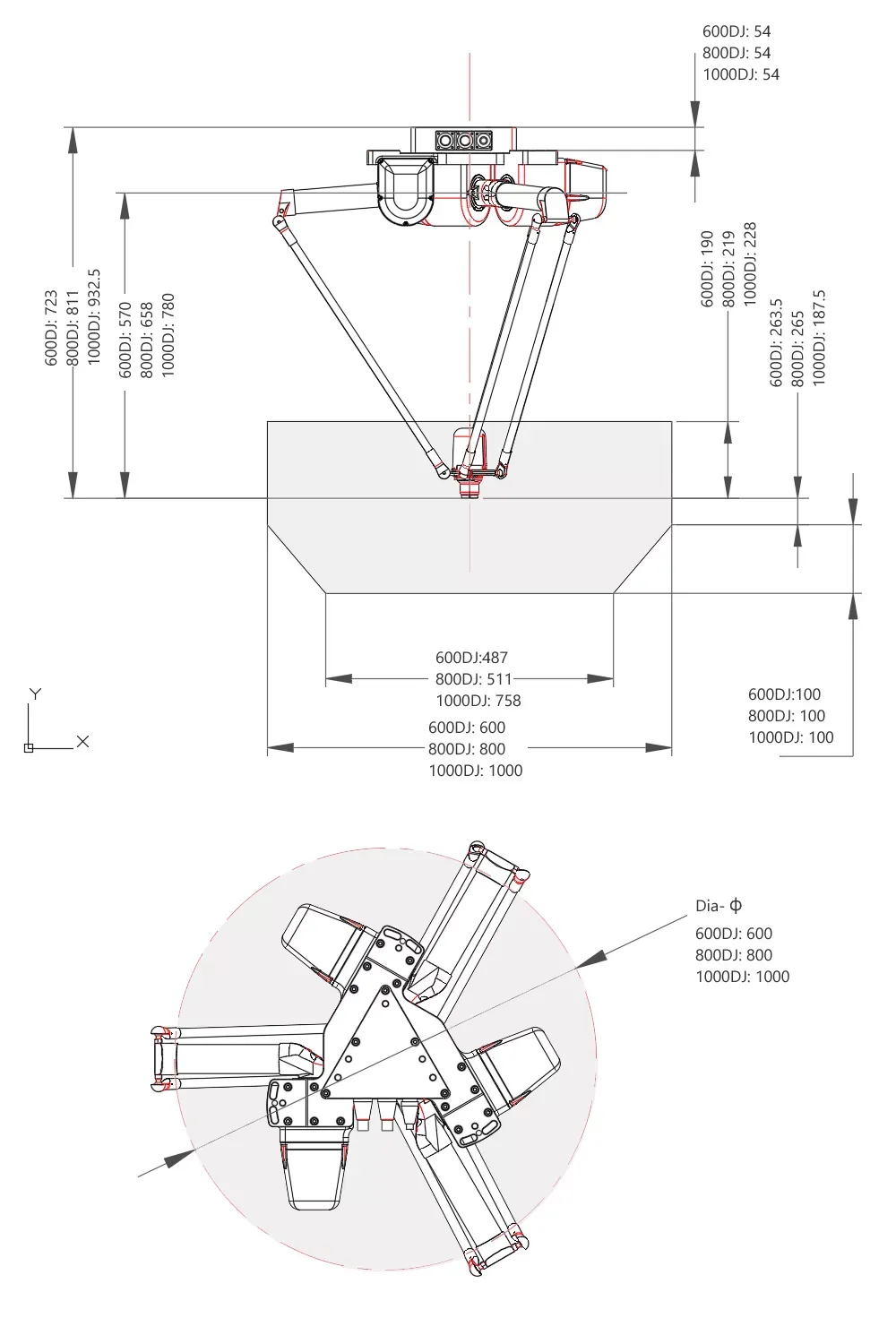

Parameters

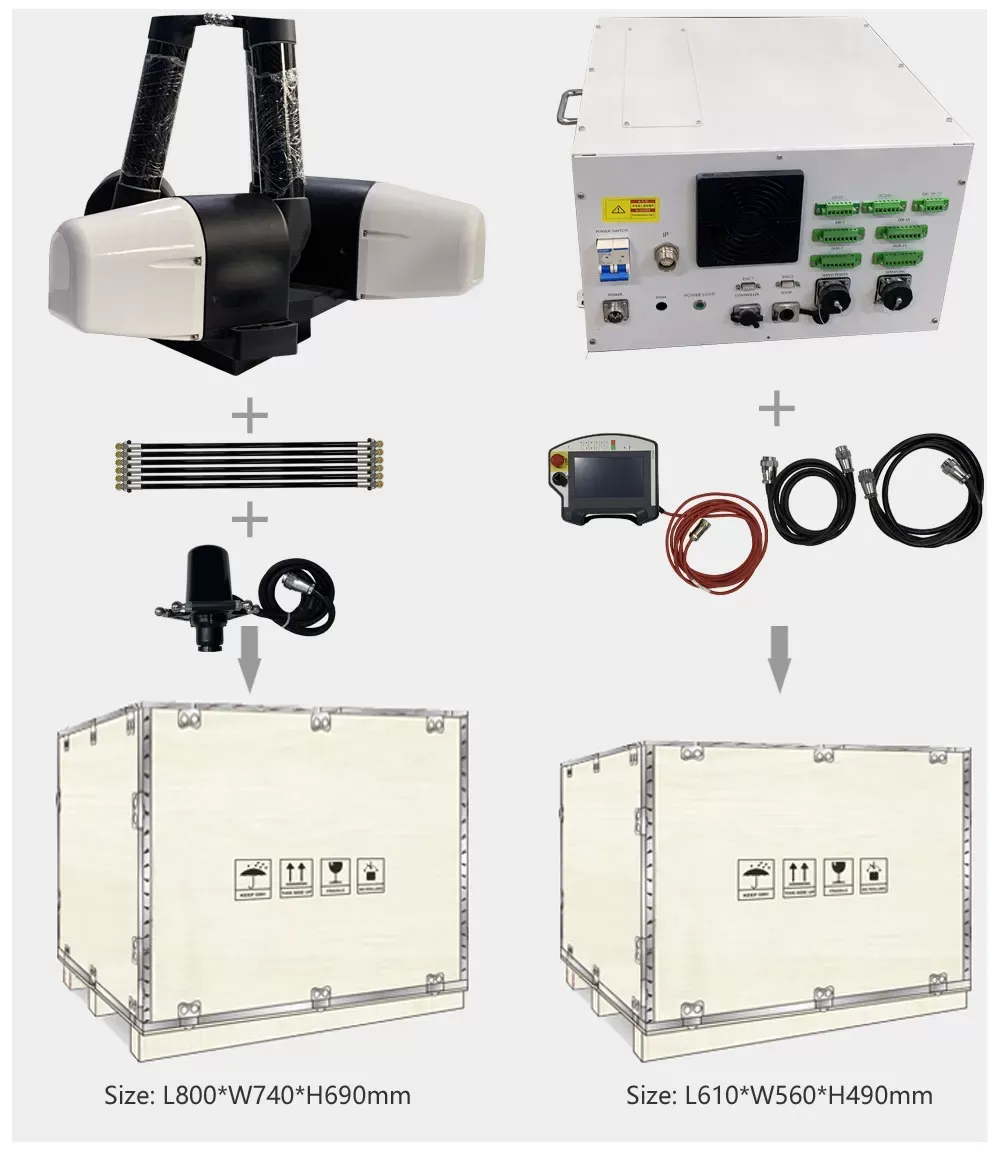

Packing
Satisfied Customers
Test Report/Certificates:
